Industrial-Grade Ethyl Cellulose

Ethyl Cellulose (or ethylcellulose) is a derivative of cellulose in which some of the hydroxyl groups on the repeating glucose units are converted into ethyl ether groups.It is soluble in organic solvents and is a useful film-forming agent, adhesive, and thickener. Due to its film-forming properties, thermoplasticity, and hydrophobicity, it is widely used in various fields, including pharmaceuticals, food, and specialty coatings.

Chemical Name :
Ethyl Cellulose
Application :
Coatings, Plastic, Food, Electricle, Adhesive
Appearance :
White powder
brand :
Kabasph

Inquiry now

product introduction

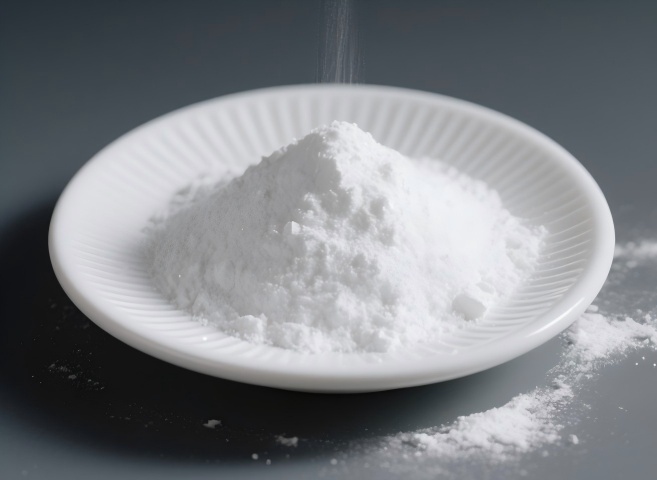

Ethyl Cellulose (EC) is an organic solvent-based cellulose ether primarily derived from natural cellulose through chemical processing. The product is odorless, white to light yellow powder or granules. It has a bulk density of 0.2–0.4 g/cm³, a density of 1.14 g/cm³, and a softening point of 135–155°C.

EC is currently the only organic solvent-based cellulose ether available for industrial production and application. It exhibits excellent thickening properties, adhesive properties, film-forming properties, thermoplastic properties, compatibility, physical stability, chemical stability, and is non-toxic and harmless. Ethyl Cellulose from China AAB Group can be used as a thickener, adhesive, film-forming agent, or base material in applications such as coatings, inks, adhesives, electronic pastes, and specialty plastics.

Product name: Ethyl Cellulose

CAS No.: 9004-57-3

MF: C23H24N6O4

MW: 448.47446

EINECS.No: 618-384-9

Appearance: White Powder

Advantages:

Insoluble in water: Ethyl Cellulose is insoluble in water, making it suitable for applications requiring a waterproof barrier.
Soluble in organic solvents: It dissolves easily in a variety of organic solvents, making it suitable for use in various coatings and formulations.
Thermoplastic: Ethyl Cellulose can be softened and shaped by heat, making it suitable for heat-sealing applications.
Biocompatibility: It is generally considered non-toxic, non-allergenic, and non-irritating, making it suitable for pharmaceutical and food applications.
Film-forming properties: It can form a continuous, flexible film, making it suitable for coatings and encapsulation.

Specification

Item		EC-K4	EC-K7	EC-K10	EC-K15	EC-K20	EC-K35	EC-K50	EC-K70	EC-K100	EC-K110	EC-K150	EC-K200	EC-K300
Ethoxy content (%)		44.0-47.4	44.0-47.4	44.0-47.4	44.0-47.4	44.0-47.4	44.0-47.4	44.0-47.4	44.0-47.4	44.0-47.4	44.0-47.4	44.0-47.4	44.0-47.4	44.0-47.4
Viscosity specifications (20℃ or 25℃), mPa.s		4	7	10	15	20	35	50	70	100	110	150	200	300
Ash content %	Nitric acid method	≤0.3
Ash content %	Sulfuric acid method(calculated as sulfate)	≤0.4
Moisture content (%)		≤3.0
Remarks: 1. Viscosity can be tested at 20°C or 25°C, which should be specified. 2. Only one ash content indicator is provided. If no specific requirements are specified, ash content refers to ash content determined by the nitric acid method; sulfate ash content also refers to incineration residue. 3. For the above indicators, if the user has special requirements, they can be determined through mutual agreement between the supplier and the customer.

Item		EC-N4	EC-N7	EC-N10	EC-N15	EC-N20	EC-N35	EC-N50	EC-N70	EC-N100	EC-N110	EC-N150	EC-N200	EC-N300
Ethoxy content (%)		47.5-49.5	47.5-49.5	47.5-49.5	47.5-49.5	47.5-49.5	47.5-49.5	47.5-49.5	47.5-49.5	47.5-49.5	47.5-49.5	47.5-49.5	47.5-49.5	47.5-49.5
Viscosity specifications (20℃ or 25℃), mPa.s		4	7	10	15	20	35	50	70	100	110	150	200	300
Ash content %	Nitric acid method	≤0.3
Ash content %	Sulfuric acid method(calculated as sulfate)	≤0.4
Moisture content (%)		≤3.0
Remarks: 1. Viscosity can be tested at 20°C or 25°C, which should be specified. 2. Only one ash content indicator is provided. If no specific requirements are specified, ash content refers to ash content determined by the nitric acid method; sulfate ash content also refers to incineration residue. 3. For the above indicators, if the user has special requirements, they can be determined through mutual agreement between the supplier and the customer.

Item

EC-T4

EC-T7

EC-T10

EC-T15

EC-T20

EC-T35

EC-T50

EC-T70

EC-T100

EC-T110

EC-T150

EC-T200

EC-T300

Ethoxy content (%)

≥49.6

Viscosity specifications (20℃ or 25℃), mPa.s

100

110

150

200

300

Ash content %

Nitric acid method

≤0.3

Sulfuric acid method(calculated as sulfate)

≤0.4

Moisture content (%)

≤3.0

Remarks:
1. Viscosity can be tested at 20°C or 25°C, which should be specified.
2. Only one ash content indicator is provided. If no specific requirements are specified, ash content refers to ash content determined by the nitric acid method; sulfate ash content also refers to incineration residue.
3. For the above indicators, if the user has special requirements, they can be determined through mutual agreement between the supplier and the customer.

Application Areas

1. Coatings Industry

High-temperature coatings: Used as the main film-forming agent in baked coatings, coil coatings, etc.
Specialty inks: Thickening agent and binder for gravure inks and flexographic inks
Wood coatings: Provides excellent wear resistance and gloss

2. Adhesive Industry

Hot-melt adhesives: Improves open time and bonding strength
Pressure-sensitive adhesives: Balances initial tack and holding power
Structural adhesives: Enhances heat resistance and cohesive strength

3. Plastic and Rubber Industry

Modifiers: Improves processing performance of resins such as PVC and ABS
Impact modifiers: Enhances impact strength of engineering plastics
Release agents: Used as release coatings for rubber products

4. Food Industry

Food packaging coatings: FDA-certified contact coatings
Food additives: Used as emulsifiers and stabilizers (E462)
Edible film materials: Used for fruit and vegetable preservation coatings

5. Electronics Industry

Electronic packaging materials: Used as insulating coatings
Conductive pastes: Adjust rheological properties
Photoresists: Auxiliary film-forming materials

Industrial grade Ethyl Cellulose

Packaging

The packaging consists of an inner layer of polyethylene plastic film bag and an outer layer of composite paper bag or paper drum; each piece weighs 10 kg, 12.5 kg, or 20 kg net.

Storage and Transportation

During transportation, take precautions against rain, sunlight, and hooks. Store in a sealed, dry place, take precautions against moisture, and do not mix with other chemicals. Do not mix, transport, or store the product with toxic, harmful, or odorous goods.

Safety

According to EU regulations on hazardous substances, Ethyl Cellulose is classified as a non-hazardous substance. Dust formation and accumulation should be avoided. Spilled product should be swept up while keeping it dry, as contact with water may cause slipping hazards. For complete product safety information, please refer to the MSDS (Material Safety Data Sheet). Detailed MSDS can be obtained by contacting our company personnel.
